BGK4 Below In Ground Kit

BGK4 Below In Ground Kit

$49.95 inc GST

Part No. BGK4

Description: Below In Ground Kit

Finish: Galvanised

BGK4 Below In Ground Kit For KRG800 Parking Barrier.

BGK4 Below In Ground Kit For KRG800 is designed for KRG800 below in ground new concrete foundation installations. The KRG800 is designed to be installed to a concrete substrate. Where there is no concrete substrate then customers should install the KRG800 using a BGK4 Below in Ground Kit For KRG800. A hole is excavated to 400mm depth x 200mm square and the KRG800 barrier is installed into the ground using the BGK4 kit. This will provide a secure and strong installation for the KRG800 parking barrier.

Features:

  • Designed for KRG800 Below Ground Installations.
  • Designed for soil or asphalt installations.
  • Provides a strong and durable installation.
  • Kit contains quality galvanised threaded rod, washers and nuts.

Kit Includes:

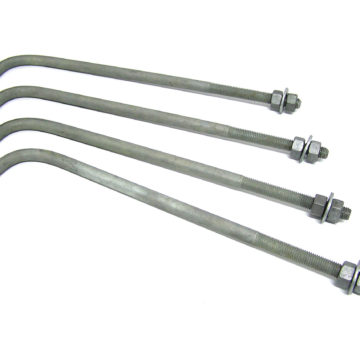

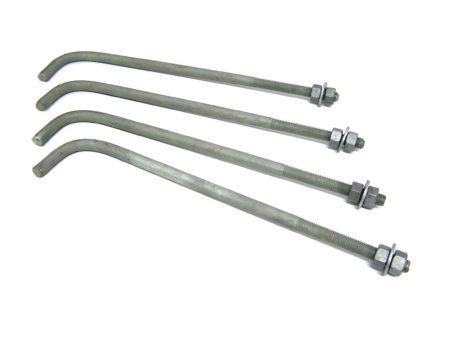

  • 4 X Galvanised Threaded Rod with 45 Degree Bend at Base
  • 4 X Galvanised Nuts
  • 4 X Galvanised Washers

Installation Notes:

BGK4 Below Ground Kit requires excavation hole to be 400mm in depth and 200mm square. Standard 20-25mpa pre mix concrete or quickset concrete is suitable for BGK4 kit installation. Such pre-mix concrete products can be purchased from your local hardware store or concrete supplier. For more information regarding this product and the installation process contact Australian Parking Barriers 1300 535792.



Additional Information

Weight 5 kg
Dimensions 40 x 15 x 15 cm
