KELRYAN HIKVISION 32 Channel NVR 2019

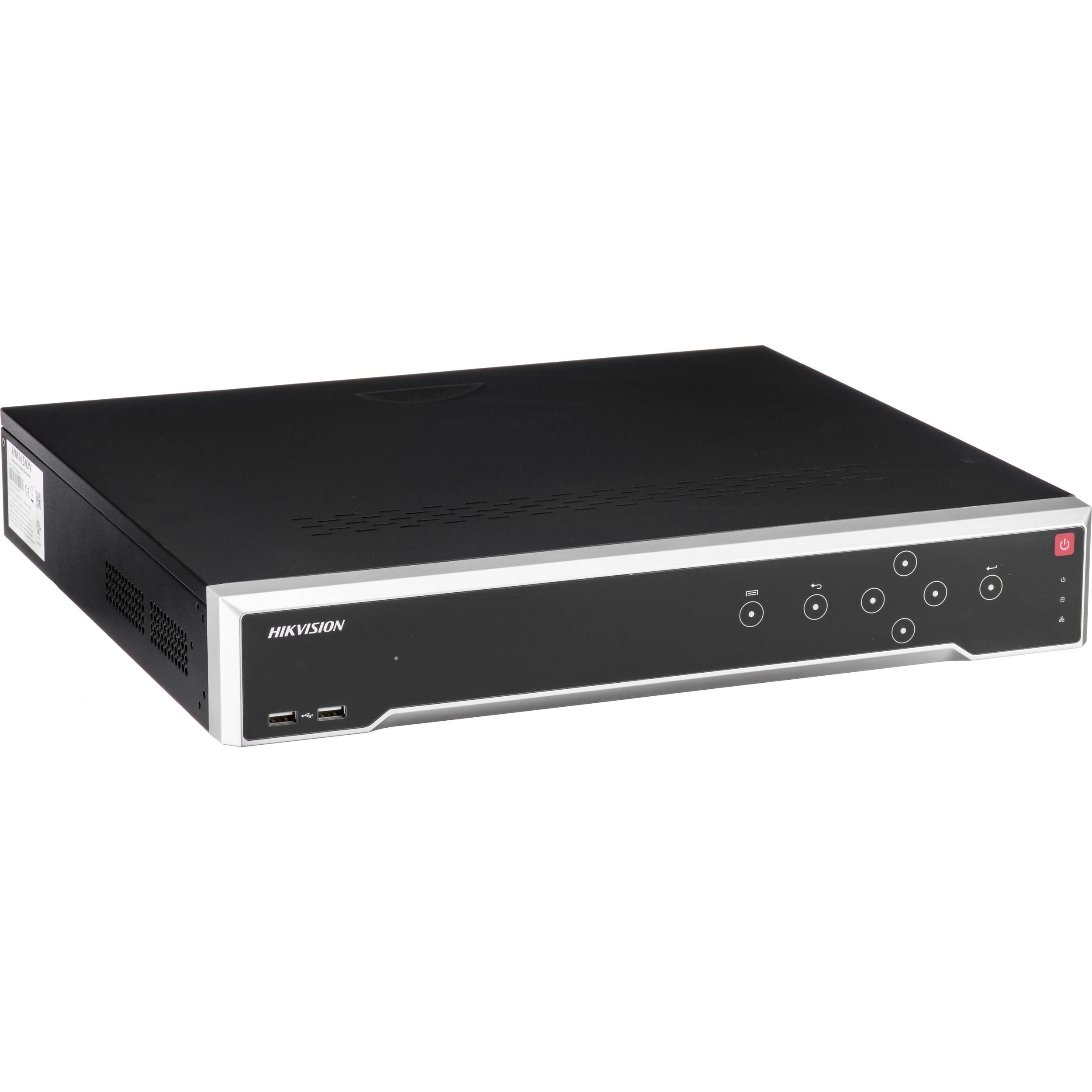

HIKVISION 32 Channel NVR

Part No. 104-719B

Description: Hikvision IP NVR (with 3TB HDD) 32 Channel with 24 x PoE Ports

Warranty: 3 Year Manufacturers Warranty.

HIKVISION 32 Channel NVR

HIKVISION 32 Channel NVR (Network Video Recorder) is a new generation recorder developed by HIKVISION.

IP video input: | 32-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled)
Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled)
Remote connection: | 128
Video/Audio Output
HDMI/VGA output: | 2-ch, resolution:
HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 2-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback: | 16-ch
Decoding
Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 4-ch@4K, 16-ch@1080p
Hard Disk
SATA: | 16 SATA interfaces for 16 HDDs
Interface Type: | 1 eSATA interface
Capacity: | Up to 6TB capacity for each HDD
Disk array
Array type: | RAID0, RAID1, RAID5, RAID6, RAID10
Number of array: | 5
External Interface
Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface: | RS-232, RS-485, Keyboard
USB Interface: | Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power Supply: | 100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE): | ≤ 45 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 19-inch rack-mounted 2U chassis
Dimensions: | 445 × 496 × 146 mm (17.5 × 19.5 × 5.7″)
Weight(without HDD): | ≤ 12.5 Kg (27.6 lb)

For more information contact KELRYAN 1300 535792. Sales, Installation & Service – Sydney, Wollongong, Sutherland, Campbelltown, Nowra, Newcastle, Singleton, Canberra & Ulladulla.



Additional Information

Weight 10 kg
Dimensions 50 x 40 x 15 cm

Download PDF

HIKVISION 32 Channel NVR

Video



Installation

KELRYAN provides an installation service for this product range. For more information contact KELRYAN 1300 535792.
