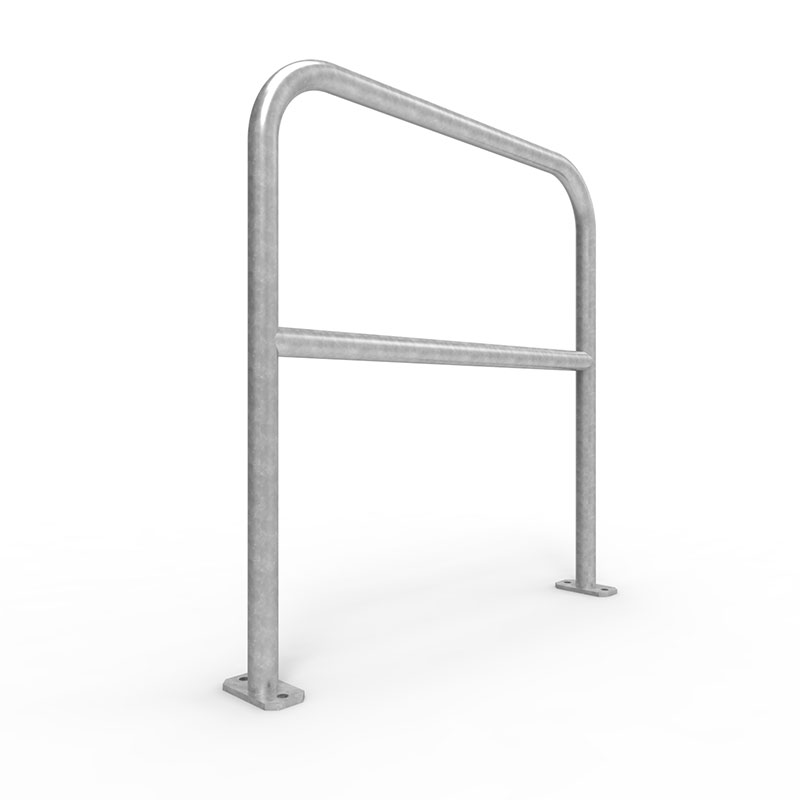

UBD150SM-G U-Bar Double Rail

UBD150SM-G U-Bar Double Rail

$200.75 inc GST

Part No. UBD150SM-G

Description: U-Bar 1500mmL X 1040mmH X 48.3mm Diameter – Surface Mount

Finish: Galvanised Finish

Warranty: 1 Year Factory Warranty

U-Bars Standard Duty

Part No. UBD150SM-G

U-Bars Standard Duty are suitable for a wide range of uses. Fabricated from heavy 3mm thick wall tube and all models are galvanised and powder coated or only galvanised. There are numerous reflective options available for the U-Bar Standard Duty. Models include surface mount and below in-ground bollards. Surface Mount models are supplied with fixings.

Material: 48mm Diameter Steel Pipe 3mm Wall

Finish: Galvanised and powder coated or galvanised only.

Height: 800mm Above Ground 300mm below in-ground.

Width: 400 or 850mm

Weight: BR1 Models 9.2kg (approx.) BR2 Models 8.5kgs (approx.)

Installation: 6mm Thick surface flange 150mm in diameter with 8 off 10 x 50mm masonry anchors for surface mount model. Below ground model has welded concrete starter bars.

Fixings: Supplied with surface mount models.

Sales, Installation & Service – Sydney, Wollongong, Newcastle, Campbelltown, Sutherland, Nowra, Canberra & Ulladulla. For More Information contact us 1300 535792.




Additional Information

Weight 24 kg
Dimensions 150 x 5 x 104 cm
