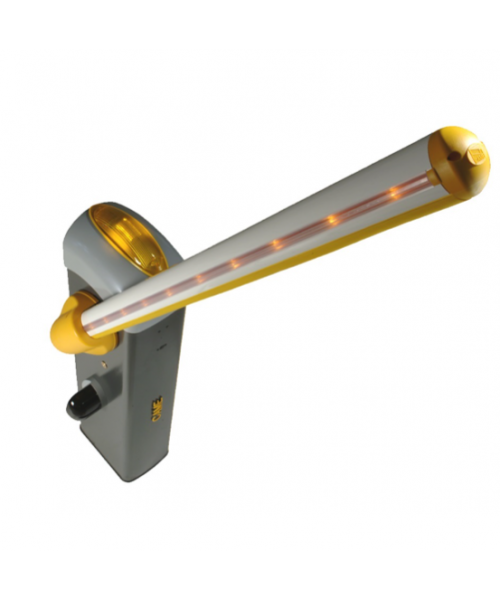

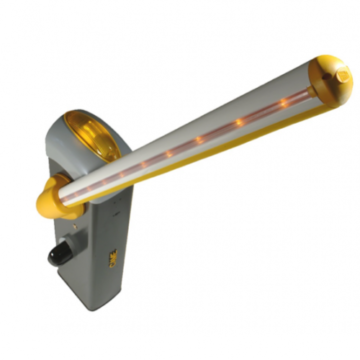

CAME Gard8 Boom Gate

CAME Gard8 Boom Gate

Part No. G8M24VST

CAME Gard8 Road Barrier for openings up to 7.6m.

  • CAME Gard8 Road Barrier with Control Panel
  • 2 X Boom Arm
  • 2 X Balance Springs 55mm
  • 1 X Reflective Sticker Kit
  • 1 X Fixed Support Stand
  • Safety Light Optional (not included)



3 Year CAME Manufacturers Warranty*

CAME Gard8 Boom Gate – 24v D.C Motor – For road way openings up to 7.6m.

The CAME Gard8 Boom Gate is the new automatic road barrier from CAME. Engineered to manage vehicular flows in both residential and public throughways. Soft Contour colours and rounded corners to counteract the “sail effect” for a barrier that fits perfectly into diversity of installation settings.

Advantages of CAME Gard8

CAME Gard8 road barriers are designed for openings up to 7.6m wide and are the ideal choice to manage vehicle flows in both residential and public throughways.

CAME Gard8 Finishes

The CAME Gard8 is available in powder coated grey finish or custom colours to suit a specific environment. The CAME Gard8 is also available in AISI304 grade stainless steel, designed for harsh environments.

CAME Gard8 Standard Mechanical Options

  • Protective Guard Fitted Standard – To Protect the user against possible risk when the bar is in motion.
  • Shock resistant bumper on boom arm – To protect damages to persons or vehicles.

CAME Gard8 Standard Electronic Options

  • Automatic Closing – delayed up to 2 minutes.
  • Open Only – Close Only
  • Open – Stop – Close – Stop
  • 24v Outputs – Add Accessories.
  • Maintained Action – Hold button for operation.
  • Pre-Flashing – safety Lights Flash 5 second before boom arm movement.
  • Obstacle Detection – Prevents movement of boom arm if an obstacle is present using safety PE Beams.
  • Slave Function – Allows two boom gates to be joined and work together.
  • Immediate Closing – Closes the gate when an event is triggered by PE beam or safety loop.
  • Total Stop – This function immediately stops the boom arm – Known as an emergency stop.
  • Braking Action – Increases the braking action of the boom arm.

CAME Gard8 Extra Options – Safety

  • Dome Flashing Warning Light
  • Luminous Light Cord For Boom Arm
  • Audible Screamer
  • PE Safety Beams
  • Magnetic Safety Ground Loop

CAME Gard8 Extra Options – Mechanical

  • Mobile Support Stand
  • Fixed Support Stand
  • Pedestrian Safety Skirt
  • Red Reflective Strips For Boom Arm
  • Boom Arm Articulation Kit
  • Backup Battery Kit

CAME Gard8 Extra Options – Access Control

  • Remote Controls
  • Keypad – Pin Code
  • Swipe Cards & Fobs

Warranty

3 Year CAME Manufacturers Warranty*. (Warranty applies only where boom gate is commissioned by an authorised APB technician).

Sales, Installation & Service – Sydney, Wollongong, Campbelltown, Nowra, Sutherland, Ulladulla, Newcastle & Canberra. For more information contact Australian Parking Barriers 1300 535792.





Additional Information

Weight 115 kg

Download PDF

CAME Boom Gate GARD8

Installation

Australian Parking Barriers  provides an installation service for this product range. For more information contact us 1300 535792.
